Product Overview

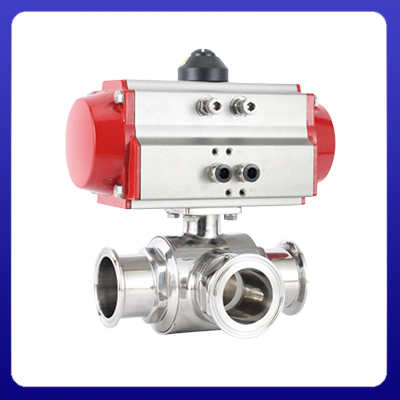

The pneumatic quick-install three-way ball valve adoptsadvanced pneumatic actuators and high-quality ball valve bodies to achieve fastand accurate fluid control. It has the characteristics of compact structure,easy operation, good sealing performance, etc., and is suitable for thetransportation and control of various corrosive and non-corrosive media.

Product Features

The pneumatic quick-install three-way ball valve is anefficient and reliable fluid control equipment, widely used in various food andpharmaceutical fields. Using compressed air as the power source, receiving theswitch signal of the control system, through the solenoid valve reversing, theball valve is operated to switch the flow direction according to the requiredpipeline.

The structure is divided into two types: L-shaped flowchannel and T-type flow channel: The L-shaped three-way can only connect twomutually orthogonal pipelines and switch, that is, the distribution effect.

The T-type three-way ball valve can make threeorthogonal pipelines interconnected, that is, the flow separation (combination)effect, and can also connect two of the pipelines and cut off the otherpipeline.

1.Quick installation: The quick-install connectionmethod makes installation and disassembly convenient and quick, savinginstallation time and cost.

2.Pneumatic operation: The valve is opened and closed bya pneumatic actuator, with fast operation speed, sensitive response, and remotecontrol.

3. Three-way design: With three channels, it can realizethe functions of fluid diversion, confluence or flow direction switching tomeet different process requirements.

4. High-quality materials: The valve body is made ofstainless steel, which has good corrosion resistance and strength. The sealsare made of high-performance polytetrafluoroethylene and other materials (JapanDaikin) to ensure the sealing performance of the valve.

5. Reliable performance: The pneumatic actuator adoptsadvanced design and manufacturing technology, with high reliability and longlife. The valve\\\\'s sealing structure is reasonably designed to effectivelyprevent leakage.

6. Flow channel polishing: The inner flow channel ispolished to 0.4μm, which effectively prevents the adhesion of the medium and iseasy to rinse and clean.

Technical parameters

1. Nominal diameter: DN20-DN100

2. Working pressure: 0-1.0MPa

3. Working temperature: -20℃-180℃

4. Applicable media: water, oil, gas, corrosive media,etc.

5. Control mode: pneumatic control

6. Connection mode: quick connection, threadedconnection, flange connection, welding connection, etc.

Application fields

1. Food and beverage industry: used for the delivery andcontrol of fluids such as food and beverages to ensure the hygiene and safetyof the production process.

2. Pharmaceutical industry: In the pharmaceuticalproduction process, strict requirements are placed on the control of fluids. Thepneumatic quick-install three-way ball valve can meet the high-precisioncontrol requirements.

3. Chemical industry: suitable for the delivery andcontrol of various chemical fluids, such as acids, alkalis, solvents, etc.

4. Oil and gas industry: used for the delivery andcontrol of fluids such as oil and natural gas, with good corrosion resistanceand reliability.

5.Environmental protection industry: In the fields ofsewage treatment, waste gas treatment, etc., the pneumatic quick-installthree-way ball valve can achieve precise control of the fluid and improve theprocessing efficiency.

Installation and maintenance

1. Before installation, carefully check whether thevalve model, specification, pressure level, etc. meet the requirements toensure that the connection size between the valve and the pipeline is correct.

2. During installation, pay attention to the flowdirection mark of the valve to ensure that the valve is installed correctly.

3. The pneumatic actuator should be installed in a dryand well-ventilated place to avoid moisture and corrosion.

4. Regularly maintain the valve, check the sealingperformance, operational flexibility, etc., and promptly identify and deal withproblems.

5. During use, if the valve is found to be faulty, itshould be stopped in time and repaired or replaced.
